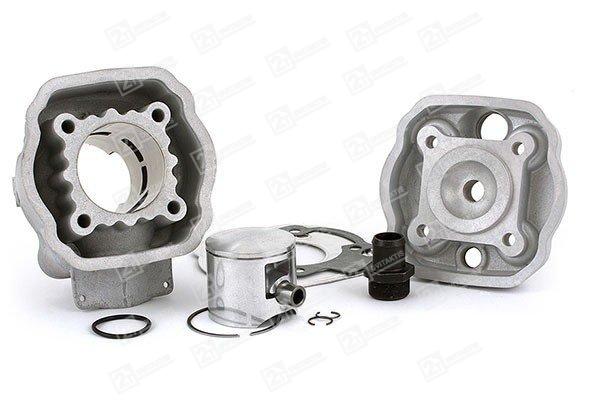

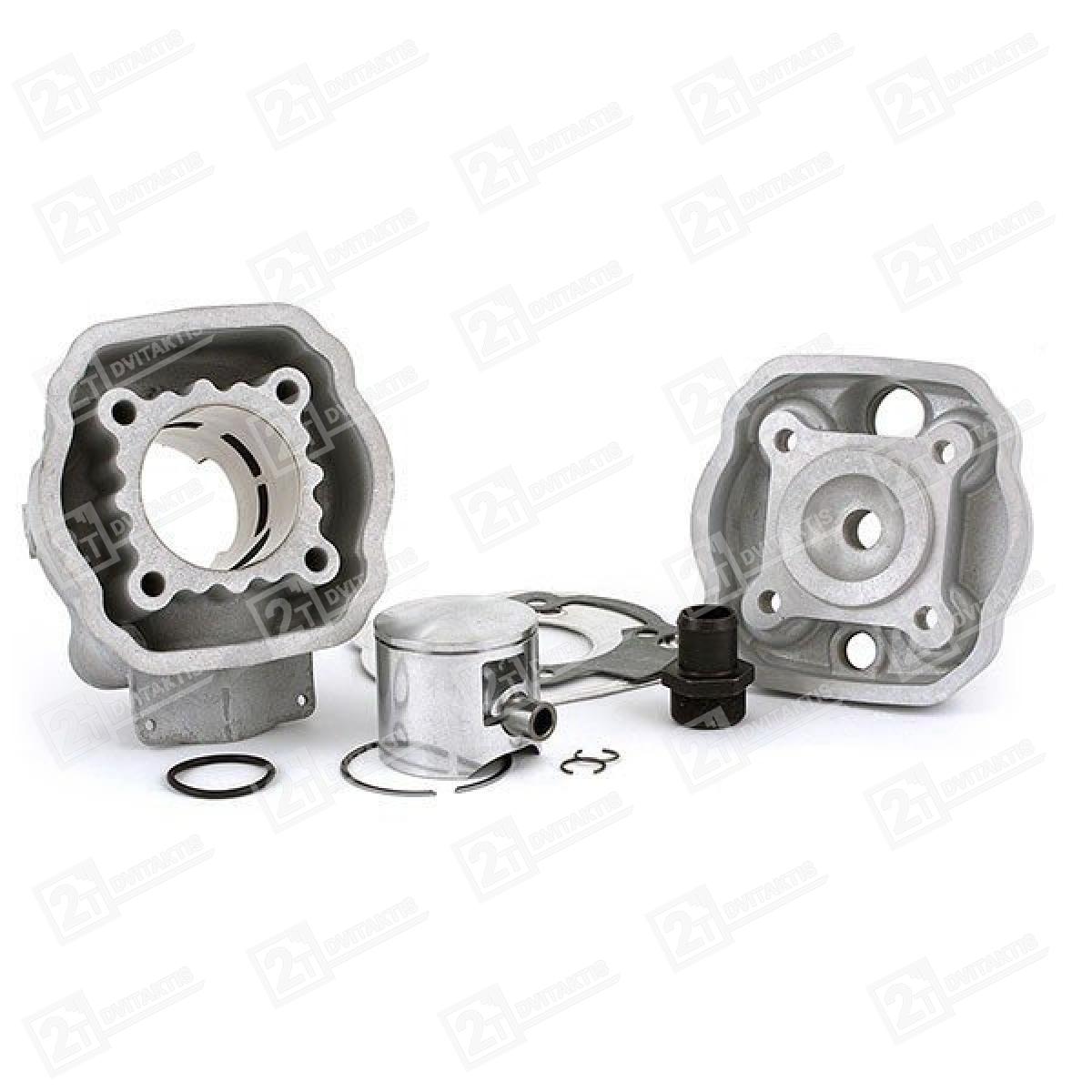

Komplekte rasite:

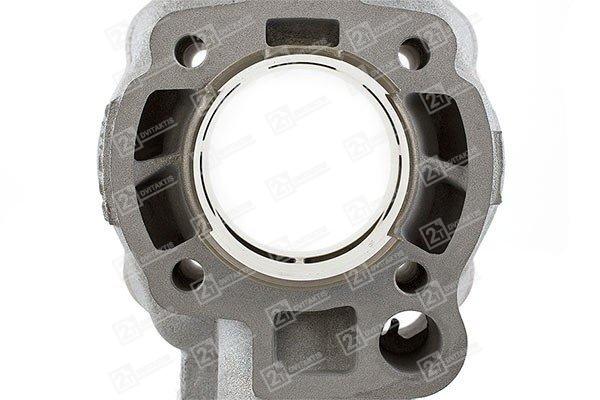

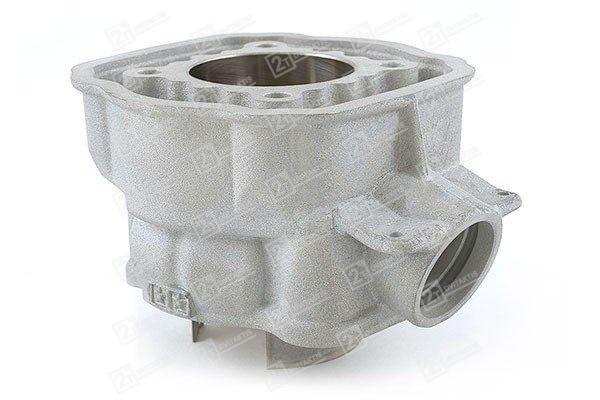

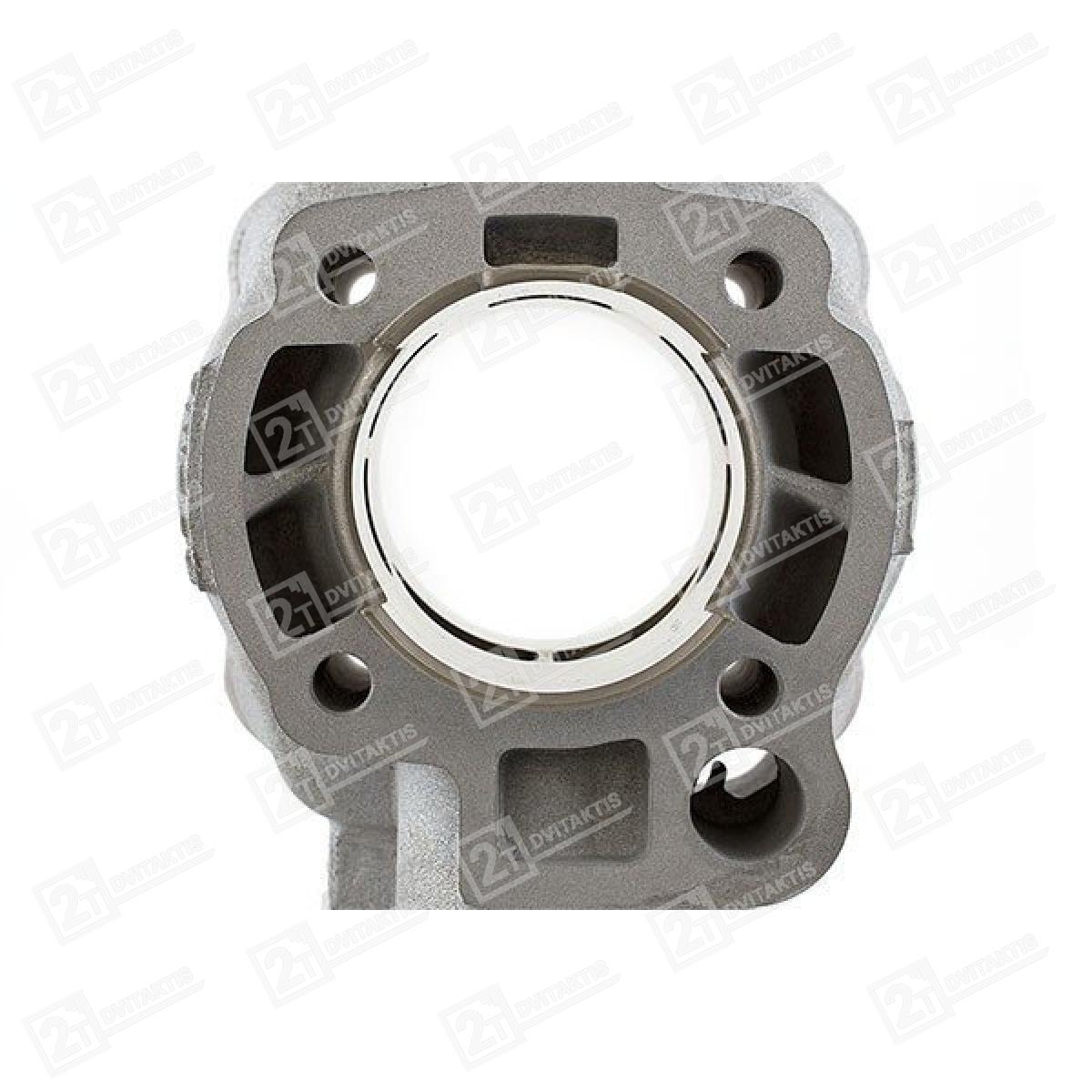

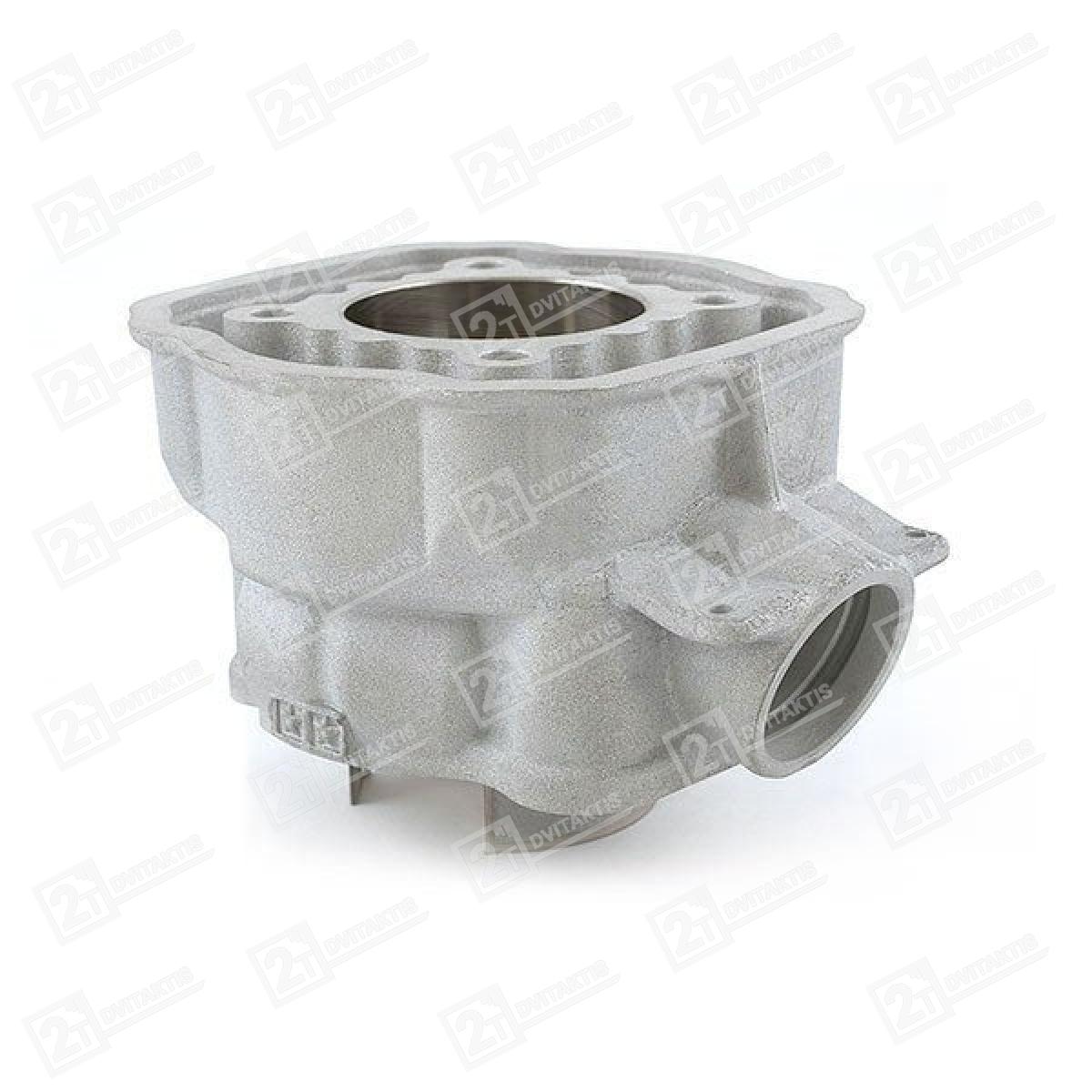

- 77cc alumininį cilindrą. 50mm su 5 įsiurbimo angomis.
- Vienžiedį Vertex stūmoklį. 50mm

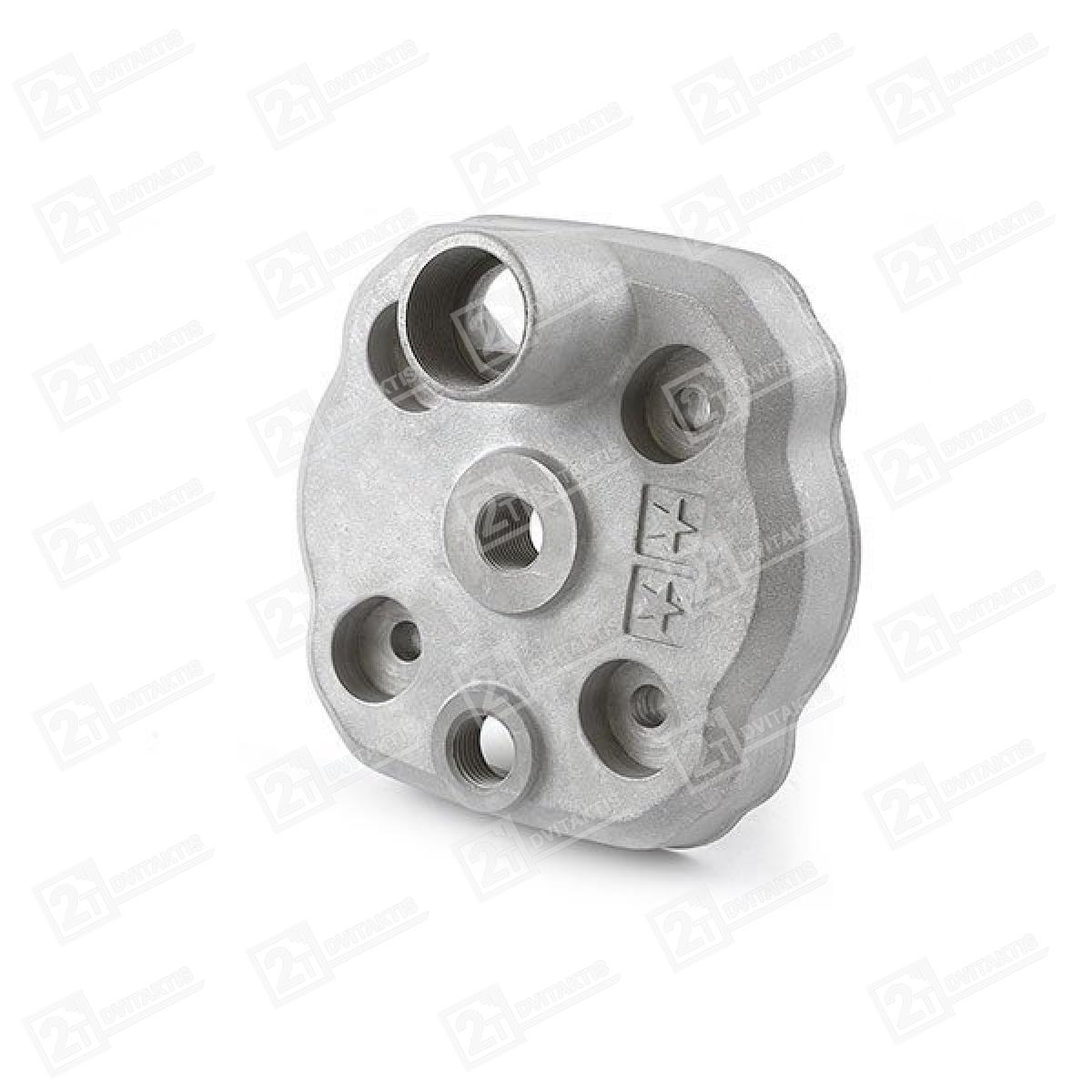

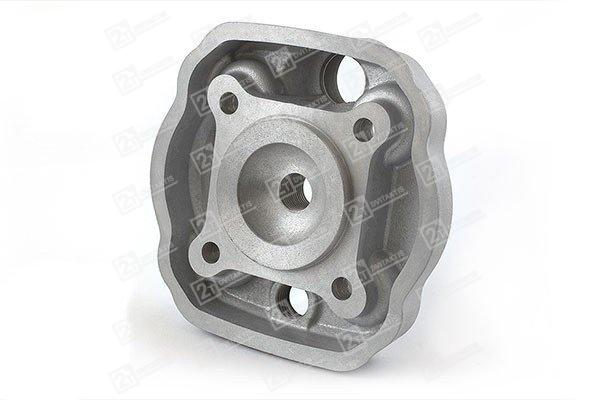

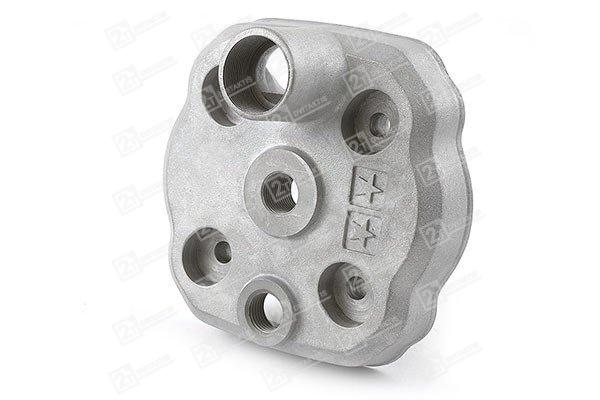

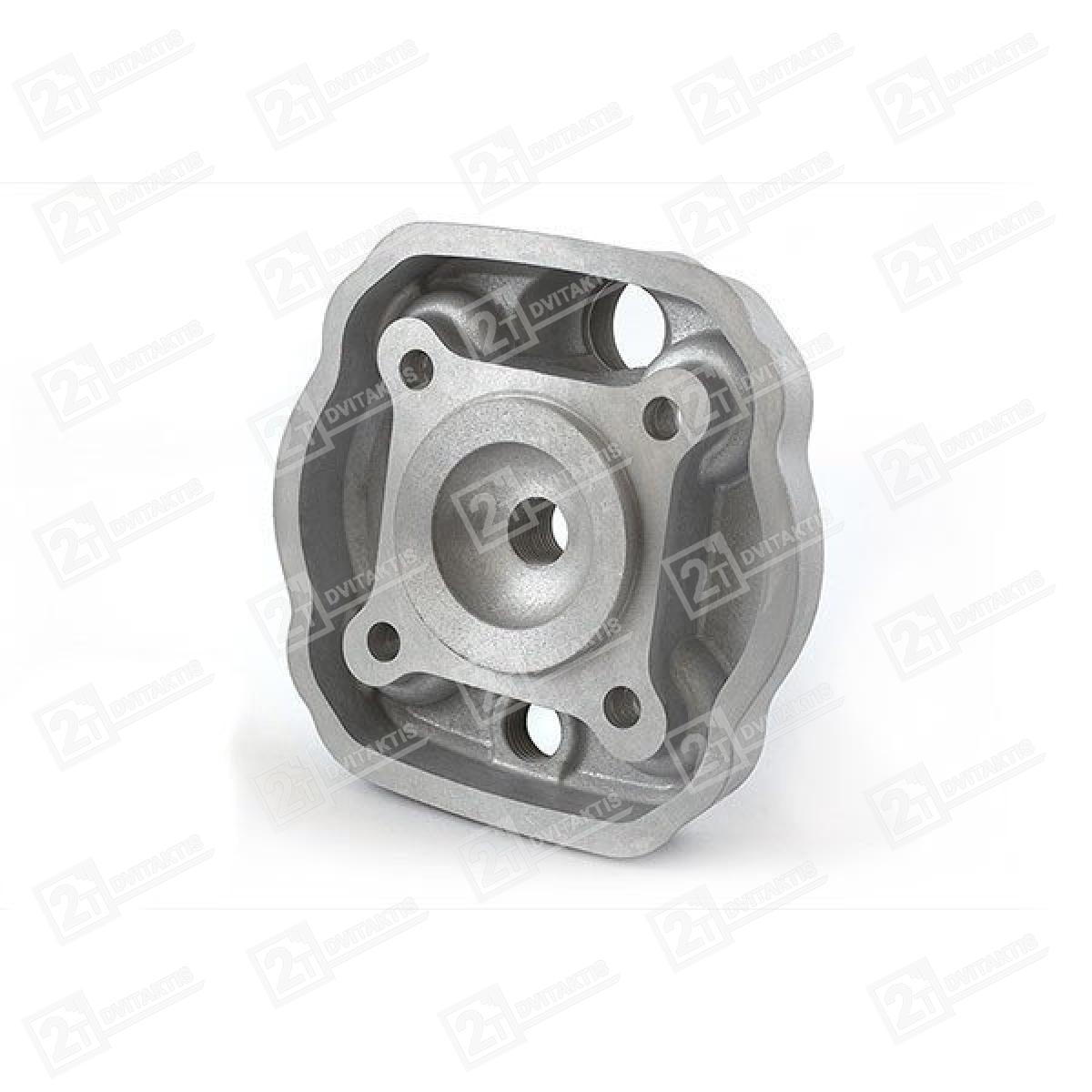

- Monoblokinė cilindro galva, aliumininę.

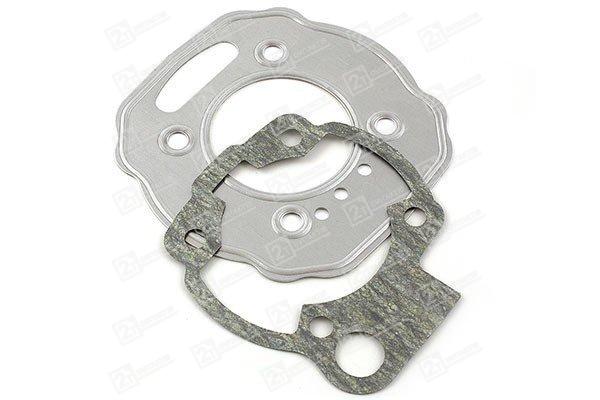

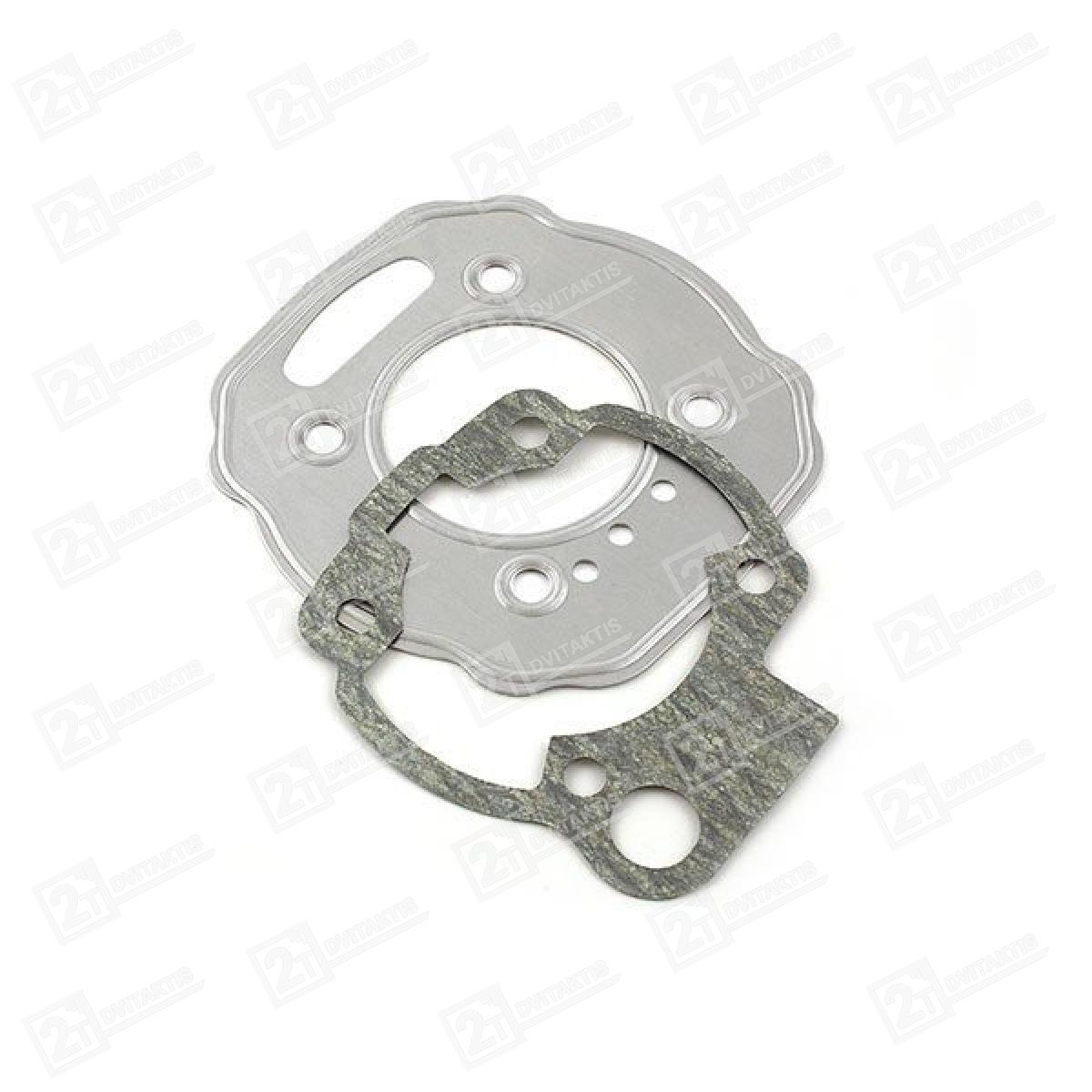

- Pilną tarpinių komplektą
Cilindro komplektas pribloškia savo paprastumu (nereikalinga jokia bloko modifikacija), galia ir patikimumu.
– Installation is very easy, crankcase milling or any other modification are not necessary. Squish clearance is pre-set to a value optimized for the respective engine type.

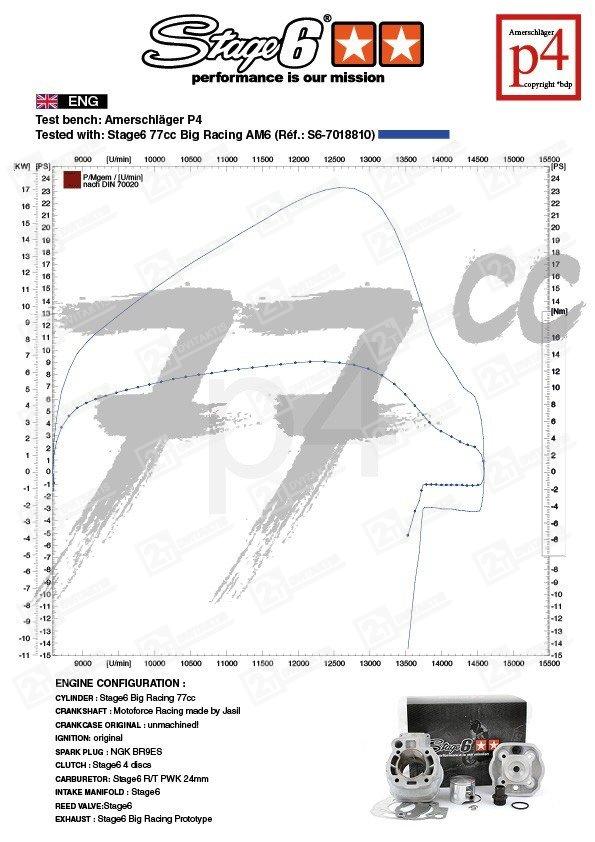

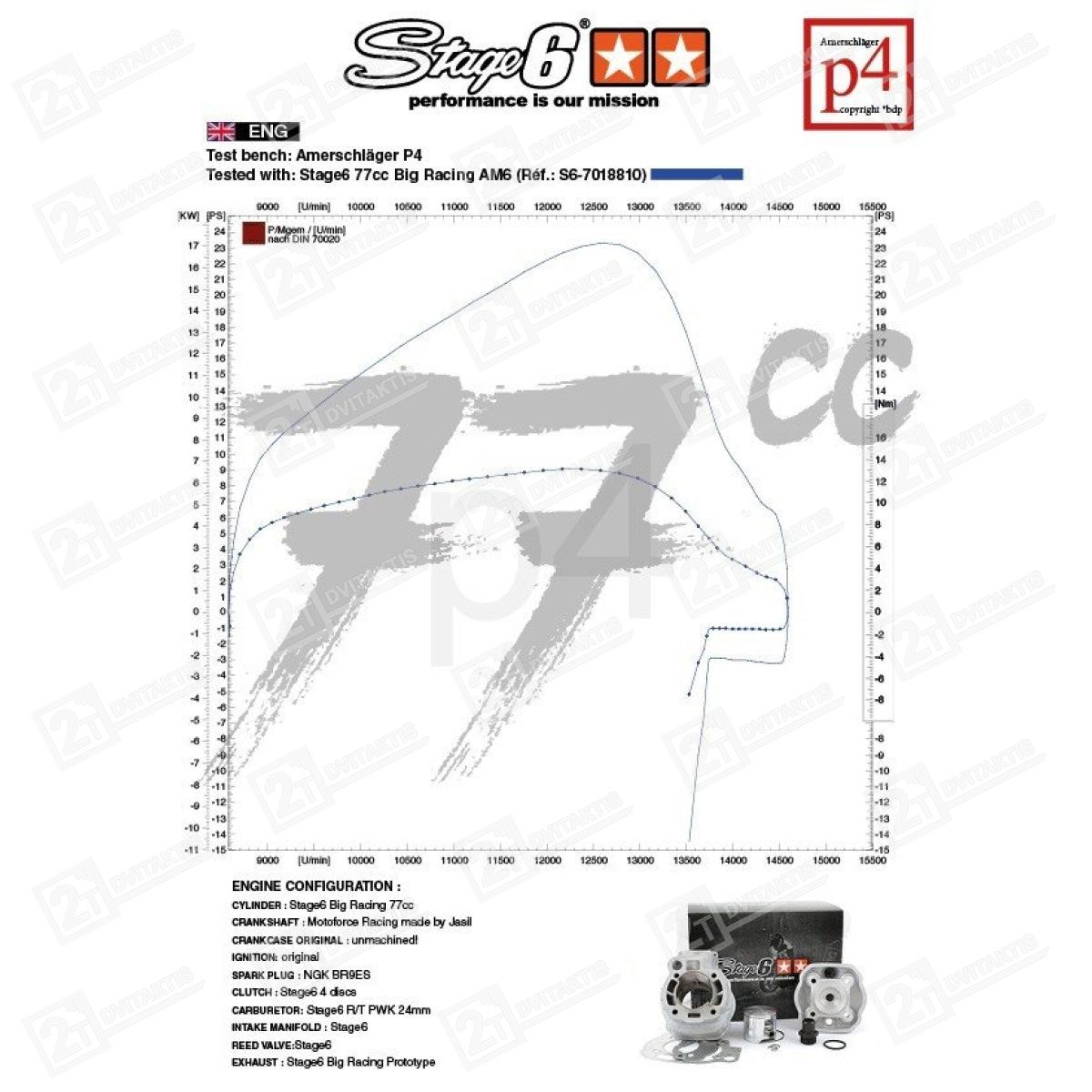

– In terms of output, the BigRacing cylinders knock it out of the ballpark: we measured a whopping 23 PS and 13 Nm on our P4 test bench using a standard set-up (24mm carburetor, original ignition, racing exhaust etc.).
– Port timings are relatively low, cooling system volume is quite large and the piston is a top quality Vertex piston. All of these factors contribute to the cylinder’s high dependability and robustness, provided that set-up and adjustments are appropriate.
Naudojant šį 77cc cilindro komplektą mes patariame naudoti ir stiprintą (sportinį) alkūninį veleną.

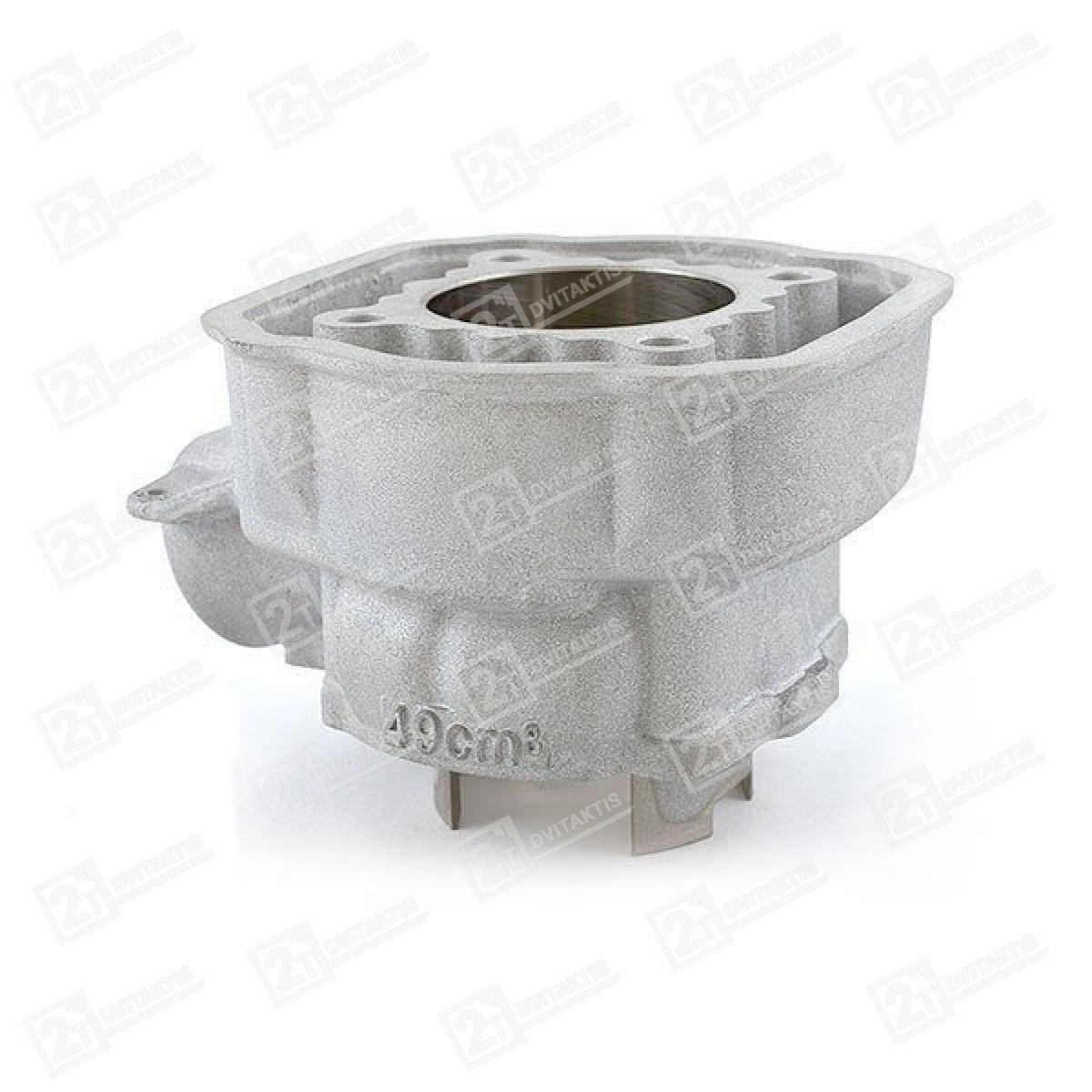

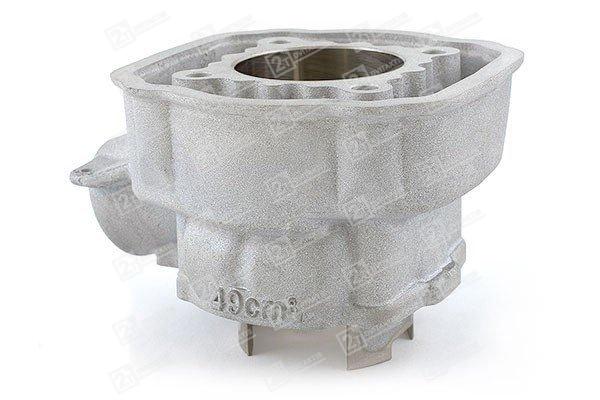

Išorėje rasite 49cc užrašą, tačiau nesijaudinkite – įsigyjote tikra 77cc cilindrą!
Tinka šiems motoroleriams:
Aprilia
AF1 50cc (AM6), MX 50cc (AM6), RS 50cc (AM6) – (after 1999), RS 50cc (AM6) – (before 1999), RX 50cc (AM6), RX Enduro 50 (until 2003 AM6), Special Engine AM6, Tuono 50cc (AM6)
Beta
RK6 50cc (AM6), RR-T Enduro 50cc (AM6) – (tubular), RR-T SM 50cc (AM6) – (tubular), RR 50cc Motard, RR Alu Enduro 50cc (AM6) – (perimeter), RR Alu SM 50cc (AM6) – (perimeter), RR Enduro 50cc (AM6) – (tubular), RR SM 50cc (AM6) – (tubular)
CH-Moto
WSM SM Racing 50cc (AM6, Euro 2), WXE Enduro Racing 50cc (AM6, Euro 2)
Fantic Motor
Caballero SM 50cc, Regolarita Casa 50cc
Generic
Trigger SM 50cc (AM6), Trigger X-Enduro 50cc (AM6), X-Enduro 50cc (AM6)
HM-Moto
Cre/Baja Enduro 50cc (version 2006) AM6, Cre/Six SM 50cc (version 2005) AM6, Cre/Six SM 50cc (version 2006) AM6, Dérapage SM Compétition 50cc (version 2005) AM6, Dérapage SM Compétition 50cc (version 2006) AM6
Husqvarna
CH Racing 50cc (AM6), SM Cross 50cc (AM6), WR 50cc (until 2000 AM6), WSM 50cc after 2000
MBK
X-Limit Enduro 50cc (after 2003) AM6 (perimeter), X-Limit Enduro 50cc (before 2003) AM6 – (tubular), X-Limit SM 50cc (after 2003) AM6 – (perimeter), X-Limit SM 50cc (before 2003) AM6 – (tubular), X-Power 50cc (AM6) – (after 2003), X-Power 50cc (AM6) – (before 2003)
Malaguti
Drakon Naked 50cc (AM6), XSM Supermotard 50cc (AM6) – (after 2003), XTM Enduro 50cc (AM6) – (after 2003)
Motorhispania
Furia Max Enduro/SM 50cc (AM6) – (tubular), RX Super Racing 50cc (AM6), RYZ Enduro/SM 50cc (AM6) – (perimeter)
Peugeot
NK7, XP6-Enduro 50cc (AM6) – (tubular), XP6-Supermotard 50cc (AM6) – (tubular), XP7, XPS-Enduro 50cc (AM6) – (perimeter), XPS-Street EVO2 50cc (AM6) – (perimeter), XPS-Supermotard 50cc (AM6) – (perimeter), XR6 50cc (AM6), XR7
Rieju
MRT 50cc, MRT 50cc Pro, MRT 50cc Pro SM, MRT 50cc SM, MRX Enduro 50cc Pro (AM6), MRX Euduro 50cc (AM6), RR Enduro 50cc (AM6), RS-1 Evolution 50cc (AM6), RS2 Matrix 50cc (AM6), RS2 NKD 50cc (AM6), RS3 50cc, SMX SM 50cc (AM6), SMX SM 50cc Pro (AM6), Spike 2 50cc (AM6)
Sherco
Enduro 50cc (AM6), Enduro SHARK 50cc (AM6), HRD Enduro 50cc (AM6), Supermotard 50cc (AM6), Supermotard Champion Replica 50cc (AM6), Supermotard IPONE Replica 50cc (AM6), Supermotard Shark 50cc (AM6)
Yamaha
DTR Enduro 50cc (after 2003) AM6 – (perimeter), DTR Enduro 50cc (before 2003) AM6 – (tubular), DTX SM 50cc (after 2003) AM6 – (perimeter), DTX SM 50cc (before 2003) AM6 – (tubular), TZR 50cc (AM6) – (after 2003), TZR 50cc (AM6) – (before 2003)
